Ballscrew-driven aluminium linear module
- 2 sliding rails and 2 sliding carriages
- Ideal for small-load machines and hobbyists.
- Best for wood and aluminium machining.
Linear modules
Engineered for unmatched precision and flexibility
Our linear modules are the cornerstone of precision motion in any automated system. Designed for reliability and performance, they provide the exact linear movement required for a vast range of industrial applications.
No two automation challenges are the same, so our linear axes are not a one-size-fits-all solution — they are a versatile family of products with extensive customization:
Diverse applications
From delicate pick-and-place tasks in electronics assembly to high-load handling in palletizing.
Robust material selection
High-strength aluminium alloys for lightweight, high-speed use — hardened steel and cast iron for rigidity in heavy-duty work.
Multiple drive technologies
Ball screws for thrust and accuracy, belt drives for speed and long travel, linear motors for ultimate speed and precision.
Comprehensive size range
Travel lengths, load capacities and form factors for both compact machinery and large-scale systems.
This deliberate diversity ensures you never have to over-engineer or compromise — you get the exact linear motion solution you need.
What is included in the standard offering
Completely engineered module body
- High-quality materials (high-strength aluminium or steel) tailored to the application.
One of the drive mechanisms
- Precision ball screws — accuracy and high thrust force.
- Belt drives — high speeds and long travel lengths.
Guidance system
- Precision linear bearings or rail systems for smooth, precise movement.
Integrated servo motors with encoders
- Closed-loop control and accurate positioning.
Standardized mounting interface
- Seamless integration with rotary modules, end-effectors and machine frames.
Pre-configured EtherCAT communication
- Ready for networking into your EtherCAT system for a quick startup.
What you receive
Physical module
- Fully assembled axis with motor
- Limit switches
- Additional I/O
- Assembled and ready to work
LinuxCNC connection files
- INI file
- EtherCAT config file
- HAL file
ENGAM control connection files
- ESI file (XML)
- Configuration file
User manual
- Connecting with LinuxCNC
- Connecting with ENGAM control
- Maintenance procedure
Additionally available
As options or custom solutions.
Custom travel lengths and load capacities
Modules supplied in different sizes and capacities according to your requirements.
Specific tooling and adapters
Custom end-effectors or mechanical interfaces for your task.
Complete software solution
Custom control software, ready to run on the module and the whole system.
Accessories and peripherals
Protective covers, brakes, additional sensors, cables and connectors.
Production line
Linear module range
Economy ballscrew-driven aluminium linear module
- 2 sliding rails and 2 sliding carriages
- Ideal for small-load machines and hobbyists.
- Best for the wood industry.
Light aluminium linear module
EALM-D16-P5-NEMA23
- 1 sliding rail and 1 sliding carriage
- Ideal for small-load machines and hobbyists.
- Best for wood and aluminium machining.

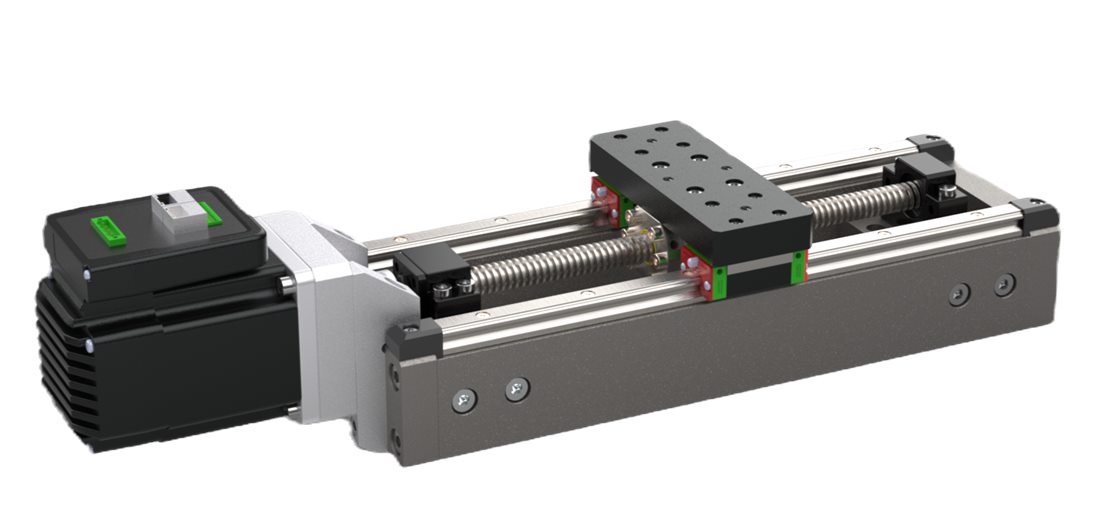

Heavy ballscrew-driven steel linear module
- 2 sliding rails and 2 sliding carriages
- Ideal for high-load machines.
- Suitable for any industry.
All modules are unprotected (open) versions. Protective covers are available as an option.
